UltraFast Innovations UFI色散超快鏡，啁啾鏡對，低損耗高激光損傷閾值鏡片，紫外光學器件

UltraFast Innovations UFI

色散超快鏡，啁啾鏡對，低損耗高激光損傷閾值鏡片，紫外光學器件

超快創新（UltraFast Innovations, UFI）全球頂尖的高精度激光光學器件

超快創新有限公司（UFI）是高性能激光光學器件的頂級制造商，專注于：

色散超快鏡（Dispersive ultrafast mirrors）
啁啾鏡對（Chirped mirror pairs）
低損耗高激光損傷閾值（LIDT）鏡片（Low-loss high-LIDT mirrors）

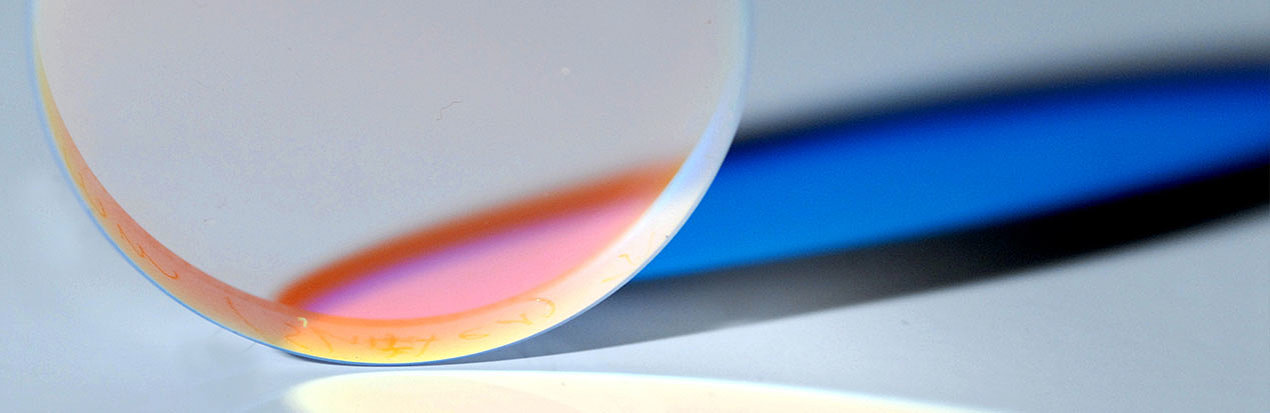

紫外光學器件（UV optics）

技術背景
UFI 衍生自德國慕尼黑大學（Ludwig-Maximilians-Universit Munchen）與馬克斯·普朗克量子光學研究所（Max Planck Institute of Quantum Optics），其鍍膜技術覆蓋：
軟X射線（XUV）至紅外（IR）全波段
專有鍍膜工藝（Proprietary coating technology）滿足嚴苛激光應用需求

核心技術優勢

超快脈沖壓縮（Ultrafast pulse compression）
市場最短激光脈沖生成技術（Dispersive technology for shortest pulses）
多波段寬帶分束器（Multi-band broadband beamsplitters）
高損傷閾值紫外光學（High-LIDT UV optics）

UltraFast Innovations UFI色散超快鏡，啁啾鏡對，低損耗高激光損傷閾值鏡片，紫外光學器件

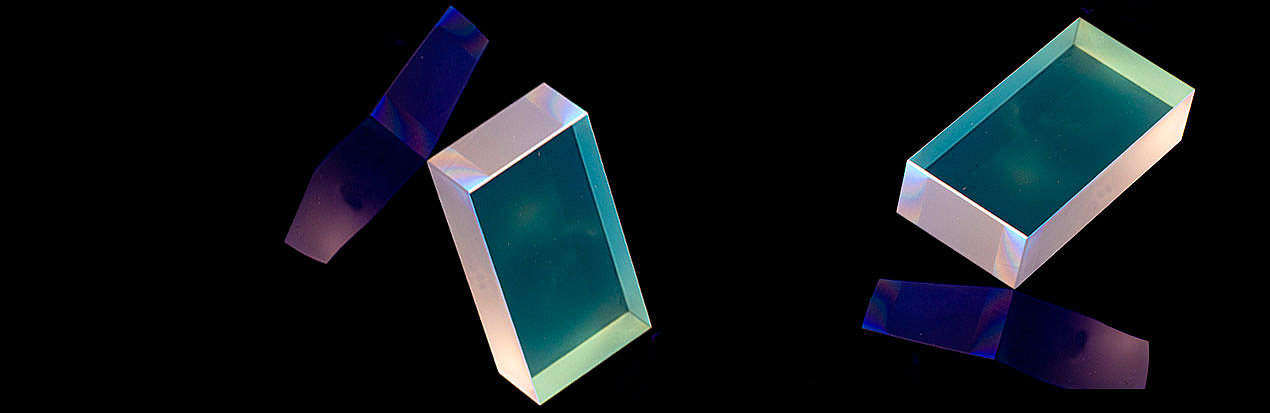

1030nm 高色散超快反射鏡

7° AOI 下的負 GDD 高達 -1000 fs2
5° AOI下負 GDD 為 -200 fs2
60nm 帶寬下的最低反射率（P 偏振）>99.8%
適用于 Yb:doped 光纖激光器的色散補償
超快啁啾鍍膜
1030nm 高色散超快反射鏡采用經過優化的多層鍍膜，因此在其 60nm 帶寬下具有極低的 GDD 和高反射率. 鍍膜基于色散光干涉，在設計入射角為5 或 7°時, 超快啁啾鍍膜為這些反射鏡提供 -500fs2 或 -1000fs2 的高負GDD. 這些反射鏡在其波長下的典型反射率 >99.9% 且在其波長范圍內的最小反射率為 99.8%. 1030nm 高色散超快反射鏡適用于 Yb:doped 光纖激光器以及 NIR 光譜中的其他超快激光器的脈沖壓縮和色散補償。提供標準英制尺寸12.7mm 或 25.4mm。

Name	CW (nm)	Min (nm)	Max (nm)	Reflectivity (%)	GDD (fs2)	AOI (°)	Pol	Comments
HD1601	1030	1027	1033	99.93	-3000	3	p	High-dispersive mirror
HR1511	1035	1032	1038	99.9	0	45	s	High-reflective mirror
HD51	1032	1028	1037	99.5	-4000	5	p	High-dispersive mirror
F1351_RC3	1020	1010	1030	99.98	-	15	p	Beam splitter
HD40	1030	1020	1040	99	-2500	5	p	High-dispersive mirror
HD73	1030	1020	1040	99.8	-3000	3	p	High-dispersive mirror
PD1401_RC1	1030	1020	1040	99	5000	7	p	Mirror with high positive dispersion
HD103	1040	1030	1050	99	1750	5	p	High-dispersive mirror
HD86	1040	1030	1050	99	-1200	3	p	High-dispersive mirror
PD2004	1040	1030	1050	99.9	5000	5	p	Mirror with high positive dispersion
HD1708	1032.5	1020	1045	99.92	-2000	5	p	High-dispersive mirror with high reflectivity
HD1312	1062.5	1050	1075	99	-3200	3	p	High-dispersive mirror
PD41	1030	1015	1045	99	1000	6	p	Mirror with high positive dispersion
PD2003	1040	1025	1055	99.9	3000	5	p	Mirror with high positive dispersion
HD1808	1055	1040	1070	99.95	-2000	5	p	High-dispersive mirror with high reflectivity
BS1202	1032	1015	1050	1	-	45	p	Thin-film polarizer
HD121	1030	1010	1050	99	-1000	5	p	High-dispersive mirror
HD64	1030	1010	1050	99.5	-1000	5	p	High-dispersive mirror
HD61	1040	1020	1060	99.5	-1050	0	p	High-dispersive mirror
HD90	1040	1020	1060	99	-1200	7	p	High-dispersive mirror
HD122	1032.5	1010	1055	99	-1200	8	s	High-dispersive mirror
HD123	1035	1010	1060	99	-300	8	s	High-dispersive mirror
HD1565	1035	1010	1060	99.8	-1000	5	p	High-dispersive mirror
PD1565	1035	1010	1060	99.8	1000	5	p	Mirror with high positive dispersion
HD1959	1030	1000	1060	99.95	-500	7	p	High-dispersive mirror with high reflectivity
HD59	1030	1000	1060	99	-500	5	p	High-dispersive mirror
HD1310	1040	1010	1070	99	-1000	7	s	High-dispersive mirror
HD65	1040	1010	1070	99.5	-1000	5	p	High-dispersive mirror
CM1821	1020	980	1060	99.98	-25	0	p	Dispersive mirror with high reflectivity
CM39	1030	980	1080	99	-500	5	p	Dispersive mirror with high reflectivity
TOD1501	1060	1010	1110	99.9	0	6	s	Mirror with third order dispersion (TOD)
UHR17	1060	1010	1110	99	0	3	p	High-reflective mirror
CM150	1040	980	1100	99	-150	5	p	Dispersive mirror with high reflectivity
CM1737	1025	950	1100	99.95	-25	5	p	Dispersive mirror with high reflectivity
CM130	1045	970	1120	99	-50	5	p	Dispersive mirror with high reflectivity
UHR11	1045	970	1120	99	0	3	p	High-reflective mirror
HD2320	1030	950	1120	99.8	-200	5	p	Dispersive mirror
HD120	1035	950	1120	99.8	-200	5	p	High-dispersive mirror
HR1707	1040	950	1130	99.99	0	45	p,s	High-reflective mirror
PC54	1025	925	1125	99	-50	12	both	Broad-band dispersive mirror
HR2101	1064	950	1200	99.99	0	45	s	High-reflective mirror
HR1801	1010	875	1150	99.99	0	45	s	High-reflective mirror
PC1305	1025	850	1200	99	-200	5	p	Broad-band double-angle dispersive mirror
PC1611	1025	850	1200	99.7	-150	5	p	High-dispersive mirror
PC523_RC2_S_L	1020	820	1220	98	-50	5	s	Broad-band dispersive mirror
PC1601	1050	800	1300	99.5	-100	5	p	Broad-band double-angle dispersive mirror
PC1821	1050	800	1300	99.6	-120	2	p	Broad-band complementary pair
PC1542	1015	730	1300	99	-50	5	p	Broad-band dispersive mirror
PC1605	1015	730	1300	98.5	70	7	p	Broad-band complementary pair
BS1503	1025	700	1350	-	0	45	p	Beam splitter
PC94	1025	700	1350	99.9	-65	45	s	Broad-band complementary pair
PC105	1000	650	1350	98	-40	5	p	Broad-band double-angle dispersive mirror
PC147	1000	650	1350	99	-60	5	p	Broad-band complementary pair
BS1502	1050	700	1400	-	0	45	p	Beam splitter
PC1632	1050	700	1400	98.8	-85	5	p	Broad-band complementary pair
PC1701	1050	700	1400	98.5	-55	0	p	Broad-band complementary pair
PC1331	1015	650	1380	99	-50	5	p	Broad-band complementary pair
HR24	1030	660	1400	99	-	19	p	Broad-band high-reflective mirror
HD2005	1300	1250	1350	99.93	-500	5	p	High-dispersive mirror
BS45deg	1600	1520	1680	45	-	45	p	Beam splitter
CM55	1300	1200	1400	99	-60	5	p	Dispersive mirror with high reflectivity
HD1442	1550	1450	1650	99.999	-500	5	p	Mirror with third order dispersion (TOD)
BS_NP	1600	1500	1700	45	-	45	p	Beam splitter
PC1581	1400	1250	1550	99.9	-100	5	p	Broad-band dispersive mirror
IR1701	1550	1400	1700	99.97	-300	5	p	Dispersive mirror with high reflectivity
IR1502	1570	1380	1760	98.5	0	5	p	Dispersive mirror with high reflectivity
IR1812	1300	1100	1500	99.7	-250	45	p	High-dispersive mirror
IR2101	1525	1325	1725	99.8	-400	5	p	Dispersive mirror
IR1705	1575	1350	1750	99.7	-400	5	p	High-dispersive mirror
CM2005	1600	1400	1800	99.8	-120	5	p	Dispersive mirror
PC1710	1625	1350	1900	99.6	-250	5	p	High-dispersive mirror
IR16	1750	1450	2050	98	-250	5	p	Dispersive dichroic mirror
PC61	1375	1000	1750	99	-150	5	p	Broad-band complementary pair
PC1816	1400	1000	1800	99.2	-70	5	p	Broad-band dispersive double angle mirror
TOD1804	1600	1200	2000	95	0	0	p	Broad-band complementary pair
PC129	1700	1250	2150	95	-100	7	p	Broad-band double-angle dispersive mirror
TOD2207	1500	1000	2000	95	0	5	p,s	Mirror with third order dispersion (TOD)
BS2021	1550	300	2800	95	0	45	p,s	Beam splitter

UltraFast Innovations UFI色散超快鏡，啁啾鏡對，低損耗高激光損傷閾值鏡片，紫外光學器件

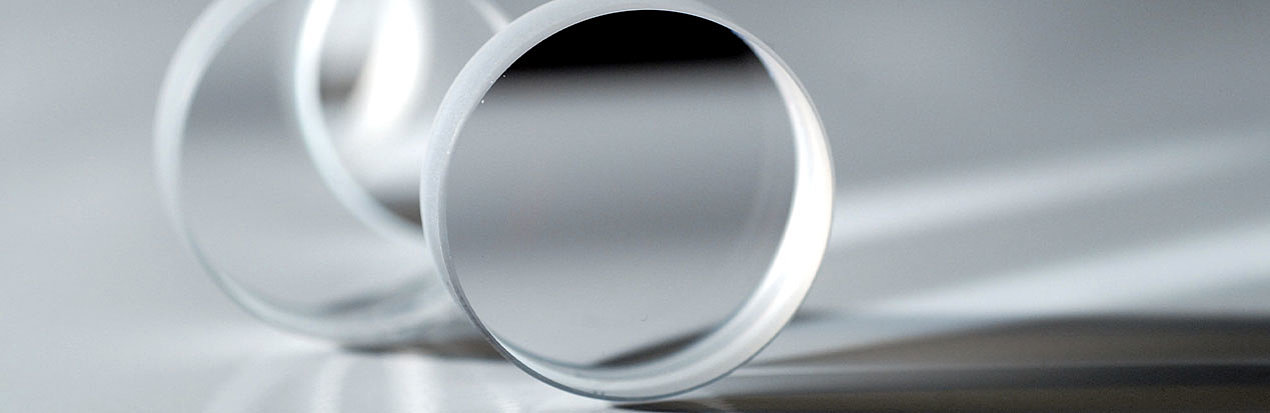

2um高色散寬帶超快反射鏡

2000 - 2200nm 之間的反射率 >99.9%
5° AOI下的GDD 為 -1000fs2
適用于 <100fs 的鈥和銩激光器脈沖壓縮
寬帶超快啁啾鍍膜
2μm 高色散寬帶超快反射鏡采用超快啁啾鍍膜，并設計用于鈥 (Tm) 和銩 (Ho) 激光器的脈沖壓縮，以及腔內色散補償。這些反射鏡在 5° 入射角 (AOI) 下具有 -1000fs2的高負群延遲色散 (GDD), 允許脈沖壓縮 <100fs. 這些 2 微米的反射鏡在 2000 - 2200nm 之間的低損耗反射率 >99.9% (P-偏振), 絕對反射率達到 99.95% 以上. 由于優良的光譜性能、低損耗和可靠的 GDD，2μm 高色散寬帶超快反射鏡特別適用于 2um 薄型激光振蕩器.這些高色散反射鏡有 12.7mm 和 25.4mm 兩種標準尺寸，非常適合集成到飛秒激光系統中.

Name	CW (nm)	Min (nm)	Max (nm)	Reflectivity (%)	GDD (fs2)	AOI (°)	Pol	Comments
BS45deg	1600	1520	1680	45	-	45	p	Beam splitter
BS_NP	1600	1500	1700	45	-	45	p	Beam splitter
HD1501	2100	2000	2200	99.95	-1000	5	p	Dispersive mirror
IR1401	1800	1650	1950	95	0	45	s	Beam splitter
IR1401_RC2	1800	1650	1950	95	0	45	s	Broad-band dispersive mirror
PC1915	1800	1650	1950	99.8	-700	5	p	Dispersive mirror
CM1531	2050	1900	2200	99.7	-200	5	p	Dispersive mirror with high reflectivity
CM2005	1600	1400	1800	99.8	-120	5	p	Dispersive mirror
HR2001	2000	1800	2200	99	0	45	p,s	High reflector mirror
CM1710	2400	2200	2600	99.8	-100	0	p	Dispersive mirror
PD2001	2050	1800	2300	99	100	5	p	Mirror with high positive dispersion
TOD1601	2300	2050	2550	99.5	0	3	p	Mirror with third order dispersion (TOD)
IR1301	2350	2100	2600	98	-100	0	p	Broad-band dispersive mirror
PC1873	2350	2100	2600	99.9	-200	5	p	Dispersive mirror with high reflectivity
IR1304_RC2	2450	2200	2700	99.2	0	0	p,s	Mirror with third order dispersion (TOD)
PC1710	1625	1350	1900	99.6	-250	5	p	High-dispersive mirror
IR16	1750	1450	2050	98	-250	5	p	Dispersive dichroic mirror
BS101	1850	1550	2150	50	0	7	p	Beam splitter
IR1402	2100	1800	2400	98	500	45	s	Mirrow with positie dispersion
IR1803	2100	1800	2400	99.8	-500	5	p	High-dispersive mirror
PC1904	2200	1900	2500	99	-300	5	p	Dispersive mirror
HR1999	2300	2000	2600	99.98	0	0	p,s	High-reflective mirror
PC2001	1950	1600	2300	98	-200	5	p	Dispersive mirror
IR24	2475	2100	2850	97	-250	0	p	Broad-band dispersive mirror
TOD1804	1600	1200	2000	95	0	0	p	Broad-band complementary pair
PC1905	2100	1700	2500	99.9	0	45	s	High-reflective mirror
PC1911	2300	1900	2700	99.99	-75	5	p	Dispersive mirror with high reflectivity
IC1501	2450	2050	2850	98.5	-450	5	p	Broad-band dispersive mirror
PC129	1700	1250	2150	95	-100	7	p	Broad-band double-angle dispersive mirror
PC1741	2200	1700	2700	99.2	-250	0	p	High-dispersive mirror
IC2001	2300	1800	2800	99.9	0	5	p	High reflector mirror
IR25	2500	2000	3000	97	-200	0	p	Broad-band dispersive mirror
IR41	2700	2200	3200	97	-300	5	p	Broad-band dispersive mirror
CM2006	2200	1600	2800	98	-60	0	p	Broad-band complementary pair
HRIR2	2600	2000	3200	99	-	5	p	Dichroic mirror
HRIR1	2595	1990	3200	99	-	5	p	Broad-band high-reflective mirror
PC1699	2125	1500	2750	99	-300	3	p,s	Input Coupler
IR13	2550	1900	3200	99	-	5	p	Dichroic mirror
IC1905	2100	1400	2800	95	0	0	p	Input Coupler
CM1953	2400	1600	3200	98	-50	5	p	Broad-band complementary pair
ARIR16	2375	1550	3200	0.5	0	5	p	Broad-band IR anti-reflection coating
ARIR19	2350	1500	3200	0.5	0	0	p	Broad-band IR anti-reflection coating
IR1805	2000	1000	3000	99	-	5	p	Beam splitter
ARIR17	2750	1500	4000	1	0	0	p	Broad-band IR anti-reflection coating

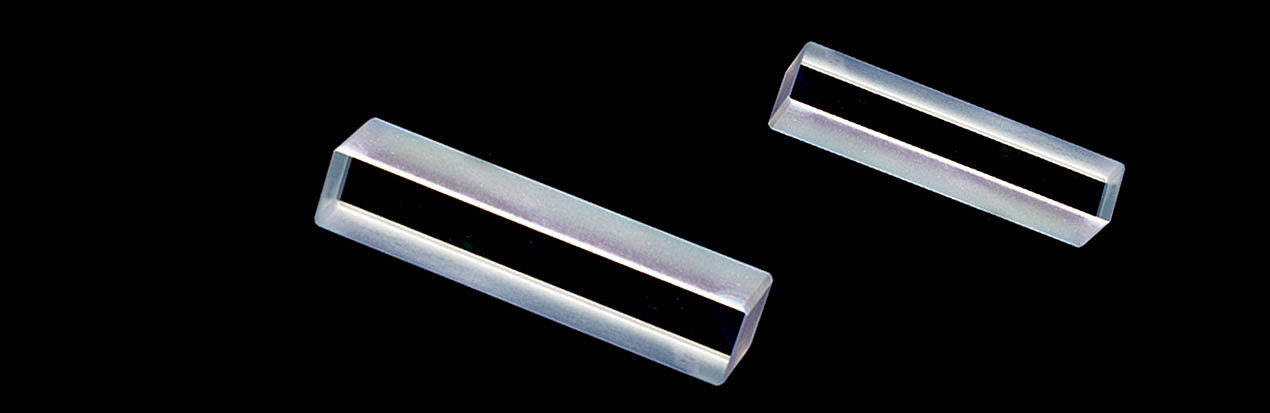

3200nm 高正色散超快反射鏡

5° AOI 下的正 GDD 為 500 fs2 at 5° AOI
>99.9% 最小反射（P 偏振）
寬帶中紅外鍍膜設計，覆蓋2800–3600nm
中紅外鎖模激光器的理想選擇
UltraFast Innovations (UFI) 3200nm 高正色散超快反射鏡提供高正 GDD，與該波長范圍內大多數材料的 GDD 符號相同。這些正啁啾反射鏡可用于脈沖壓縮和啁啾脈沖放大器系統，例如混合棱鏡/反射鏡壓縮器。在設計入射角 (AOI) 為 5° 時，這些反射鏡可最大限度地增加一對超快反射鏡之間的反射次數，同時保持較小的占地面積。UltraFast Innovations (UFI) 3200nm 高正色散超快反射鏡采用熔融石英基板，具有出色的熱穩定性和 25.4mm 直徑，有助于集成到中紅外超快激光裝置中。

Name	CW (nm)	Min (nm)	Max (nm)	Reflectivity (%)	GDD (fs2)	AOI (°)	Pol	Comments
IR11	2900	2600	3200	99	450	5	p	Dispersive dichroic mirror
IRIC	2900	2300	3500	99	-	0	p	Dichroic mirror
CM1851	3000	2000	4000	99.5	-200	5	p	Broad-band complementary pair
IR26	3100	2800	3400	99	500	0	p	Broad-band mirror with positive dispersion
HD346	3200	2800	3600	99.96	500	5	p	Mirrror with positive dispersion
HD2031	3200	2700	3700	99.9	400	5	p,s	Mirror with positive dispersion
IR21	3275	2850	3700	98		0	p	Beam splitter
IR15	3500	3000	4000	98	-500	5	p	Broad-band dispersive mirror
IR1322_RC1	3525	3100	3950	98	-200	0	p	Broad-band dispersive mirror
HD1715	3850	3200	4500	99.95	100	5	p,s	Mirror with positive dispersion
IR1501	4000	3500	4500	99	-	45	s	Dispersive mirror with high reflectivity
IR1321_RC7	4250	3750	4750	99.5	300	0	p	Mirror with third order dispersion (TOD)
IR1321_OC_RC5	4275	3850	4700	90	0	0	p	Broad-band dispersive mirror
IR1321_OC_RC1	4300	4000	4600	99	-400	0	p	Broad-band dispersive mirror
IR1321_OC_RC4	4300	4000	4600	98	0	0	p	Broad-band dispersive mirror
FIR1	5500	4700	6300	99	-	0	p	IR filter
FIR2	5600	4650	6550	65	-	0	p	High-dispersive mirror

UltraFast Innovations UFI色散超快鏡，啁啾鏡對，低損耗高激光損傷閾值鏡片，紫外光學器件

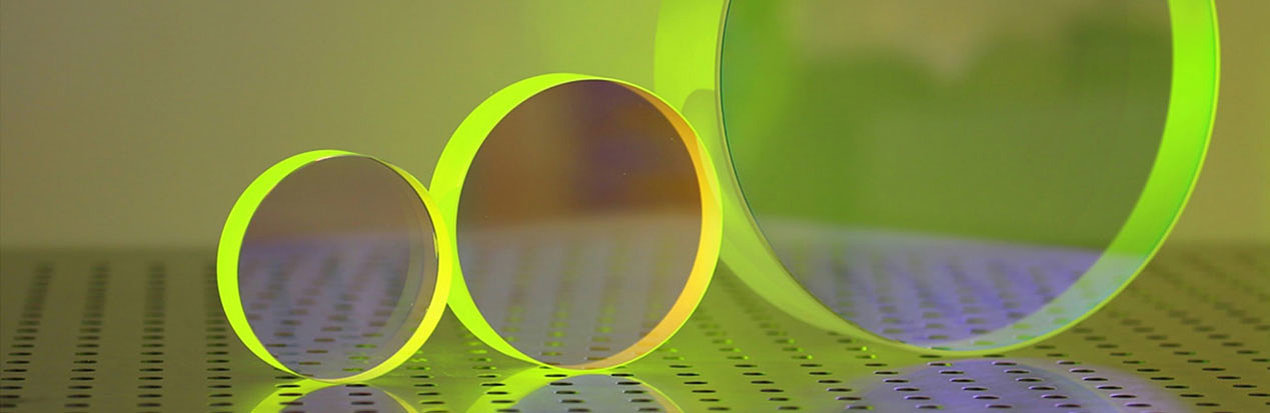

800nm 高色散超快反射鏡 Ti:Sapphire dispersive optics

780 - 830nm下的反射率 >99.8% ( P 偏振)
5° AOI下的群延遲色散為 -1300fs2
適用于 Ti:sapphire 超快激光器的脈沖壓縮
超快啁啾鍍膜
800nm 高色散超快反射鏡具有基于色散光干涉的優化多層鍍膜，具有低群延遲色散 (GDD) 和高反射率的特點。在 5°設計入射角 (AOI) 下, 這些反射鏡的 GDD 為 -1300 fs2 且 P 偏振的最低反射率為 99.8%. 這些超快反射鏡的高色散設計能控制三階和更高階的色散，并提供較高的光束穩定性。800nm 高色散超快反射鏡適用于 Ti:sapphire 激光器等超快脈沖的脈沖壓縮和色散補償。標準英制尺寸，并采用熔融石英基片，具有10-5 表面質量和λ/10 表面平整度。

Name	CW (nm)	Min (nm)	Max (nm)	Reflectivity (%)	GDD (fs2)	AOI (°)	Pol	Comments
BS1551	850	845	855	99	-	45	s	Beam splitter
BS1311_RC2	850	840	860	99.99	-	45	s	Thin-film polarizer
HD2002	780	760	800	99.9	-1500	5	p	High-dispersive mirror
AR770	790	770	810	1	0	0	p	Broad-band IR anti-reflection coating
HD1607	780	755	805	99.94	-1000	5	p,s	High-dispersive mirror
UHR23	785	760	810	99	0	3	p	TOD dichroic mirror
HD15	805	780	830	99	-1300	5	p	High-dispersive mirror
HD1603	777.5	750	805	99.95	-1000	5	p,s	High-dispersive mirror
HD1631	800	770	830	99.8	-700	3	p	High-dispersive mirror
HD68	805	775	835	99.5	-1000	5	p	High-dispersive mirror
PD51	807	775	840	99	1000	5	p	Mirror with high positive dispersion
UHR301	700	660	730	99.97	0	0	p	High-reflective mirror
CM1321_RC2	805	770	840	99.95	0	0	p	High-reflective mirror
CM1322_RC2	885	850	920	99.8	0	0	p	High-reflective mirror
HD1441	720	680	760	99.8	-500	5	p,s	High-dispersive mirror
CM1331	800	760	840	99	-30	0	p	Broad-band dispersive mirror
HD2012	800	760	840	99.95	-700	5	p	High-dispersive mirror
RHD4	795	750	840	99	-500	10	p	High-dispersive mirror
UHR99	795	750	840	99	0	0	s	High-reflective mirror
HD1401_RC1	775	725	825	99	-450	5	p	High-dispersive mirror
HD1401_RC2	775	725	825	99	450	5	p	High-dispersive mirror
CM347	800	750	850	99.98	-80	3	p	Dispersive Input coupler
F1307	800	750	850	50	0	10	p	Beam splitter
PD1602	800	750	850	99.92	250	5	p	Mirror with high positive dispersion
TOD51	800	750	850	99	0	5	p	Mirror with third order dispersion (TOD)
UHR21	800	750	850	99	-8	0	p	High-reflective mirror
UHR22	800	750	850	99	-7	2	p	High-reflective mirror
UHR24	800	750	850	99	0	0	p	High-reflective mirror
HD31	785	730	840	99.7	-500	10	p	High-dispersive mirror
HD1942	795	740	850	99.7	-400	45	p	High-dispersive mirror
PD1404_RC1	822	765	880	99	200	5	p	Mirror with high positive dispersion
HD1608	780	720	840	99.8	-300	20	p	High-dispersive mirror
HR1901	800	740	860	99.99	0	45	p,s	High-reflective mirror
TOD9	800	740	860	99	0	7	p	Mirror with third order dispersion (TOD)
HD1403_RC2	785	720	850	99	0	0	p
PD5	795	730	860	99	150	5	p	Mirror with high positive dispersion
CM101	805	730	880	99	-115	7	p	High-dispersive mirror
PD1521	805	730	880	99.8	250	5	p	Mirror with high positive dispersion
HD1342	780	700	860	99	-275	45	p	High-dispersive mirror
F1203	800	720	880	99	0	45	p	Beam splitter
HD116	785	700	870	99	-250	7	s	High-dispersive mirror
HD111	795	710	880	99	-270	7	p	High-dispersive mirror
HD1321	815	730	900	99	-180	5	p	High-dispersive mirror
HD1858	787.5	700	875	99.8	-300	5	p	High-dispersive mirror
HD1704	837.5	750	925	99.95	-175	5	p	High-dispersive mirror with high reflectivity
PC1305_RC2	780	690	870	99	150	-	p	Broad-band double-angle dispersive mirror
F1309	810	720	900	99	-	45	s	Beam splitter
HR1201	810	720	900	99	0	45	s	Broad-band high-reflective mirror
HD58	785	690	880	99.5	-275	7	p	High-dispersive mirror
HD67	785	690	880	99.5	-320	5	p	High-dispersive mirror
HD1601_v2	700	600	800	99.5	-150	7	p	High-dispersive mirror
DA2	780	680	880	99	-100	5	p	Broad-band double-angle dispersive mirror
CM61	800	700	900	99	0	5	p	Broad-band high-reflection mirror with GDD = 0 fs2
CM81	800	700	900	99	0	5	p	Broad-band high-reflection mirror with GDD = 0 fs2
CM83	800	700	900	99	-50	5	p	Dispersive mirror with high reflectivity
HD2222	800	700	900	99,5	-150	5	p,s	Dispersive mirror
HR2005	800	700	900	99.99	0	45	s	High-reflective mirror
HD1610	850	750	950	99.8	-150	5	p	Dispersive mirror
HD7101	850	750	950	99.8	-180	5	p	High-dispersive mirror
PC148	860	760	960	99	-50	5	p	Dispersive mirror with high reflectivity
F1401	900	800	1000	99.99	-	15	p	Beam splitter
PC139	770	660	880	99	-150	5	p	Broad-band dispersive mirror
PC139_RC2	780	660	900	99	150	5	p	Broad-band complementary pair with positive dispersion
PC1306	800	680	920	99	-120	5	p	Broad-band double-angle dispersive mirror
PC41	820	700	940	99	-60	5	p	Dispersive dichroic mirror
PC40	850	730	970	99	-50	0	p	Broad-band dispersive mirror with third order dispersion (TOD)
CM1483	775	650	900	99.7	-65	0	p,s	Dispersive mirror
F1204	775	650	900	99	0	45	s	Beam splitter
F1402_RC1	775	650	900	90	-	75	s	Thin-film polarizer
F1402_RC2	775	650	900	90	-	75	s	Thin-film polarizer
F1502	775	650	900	93	-	75	s	Thin-film polarizer
PC1831	875	750	1000	99.9	-100	5	p	Dispersive mirror with high reflectivity
PC1321	835	700	970	99	-30	5	p	Broad-band complementary pair
HD1561	845	710	980	99.8	100	5	p	Mirror with high positive dispersion
CM68	862	725	1000	99.5	-70	45	p	Dispersive mirror
CM63	860	720	1000	99	-150	5	p	Broad-band dispersive mirror
F1601	800	650	950	-	-	72	s	Beam splitter
PC1541	800	650	950	99.3	-35	5	p	Broad-band dispersive mirror
PC1916	800	650	950	99.8	-100	5	p	Dispersive mirror
TOD1	850	700	1000	99	0	10	p	Mirror with third order dispersion (TOD)
CM2101	900	750	1050	99,9	-100	9	p	Dispersive mirror
PC1971_100	775	600	950	99	-100	5	p	Broad-band complementary pair
PC1971_50	775	600	950	99	-50	5	p	Broad-band complementary pair
BS32	800	625	975	8	0	45	p	Beam splitter
PC1451	825	650	1000	99.8	-70	5	p	Broad-band complimentary pair
PC84	825	650	1000	99	-70	5	p	Broad-band double-angle dispersive mirror
PC125	815	630	1000	99.7	-60	7	p	Broad-band complimentary pair
PC150	765	570	960	99	-50	5	p	Broad-band complementary pair
PC75	700	500	900	99	-40	5	p	Broad-band double-angle dispersive mirror
BS71	725	525	925	33	0	5	p	Beam splitter
PC1511	800	600	1000	99.9	-60	5	p,s	Broad-band complimentary pair
TOD11	825	625	1025	99.5	0	10	p	Mirror with third order dispersion (TOD)
PC2003	850	650	1050	99.7	-95	5	p	Broad-band complementary pair
CM1512	900	700	1100	99.5	100	5	p,s	Mirror with positive dispersion
PC1612	837.5	625	1050	99	-50	7	p	Broad-band complementary pair
BS1412	725	500	950	99.98	-	45	s	Beam splitter
PC108_RC1	825	600	1050	99.5	-50	5	p	Broad-band double-angle dispersive mirror
PC1441	825	600	1050	99.7	-50	5	p	Broad-band complimentary pair
PC52	825	600	1050	99	-50	5	p	Broad-band dispersive double angle mirror
PC93	875	650	1100	99	-40	5	p	Broad-band double-angle dispersive mirror
HRVLT	700	460	940	98	-	45	p	High-reflective mirror
PC37_4	720	480	960	99	-40	5	p	Broad-band double-angle dispersive mirror
PC1411	700	450	950	99	-50	5	p	Broad-band dispersive double angle mirror
PC37_1	700	450	950	99	-30	5	s	Broad-band double-angle dispersive mirror
PC37_2	700	450	950	99	-30	5	s	Broad-band double-angle dispersive mirror
PC37_3	700	450	950	98	-30	5	p	Broad-band double-angle dispersive mirror
CM71	750	500	1000	98	0	45	p	Beam splitter (dispersion controlled within 550-610nm)
PC1334_RC4	750	500	1000	98	-40	5	p	Broad-band double-angle dispersive mirror
PC42	750	500	1000	99	-45	5	p	Broad-band double-angle dispersive mirror
PC32	800	550	1050	99	-40	5	p	Broad-band double-angle dispersive mirror
CM2010	850	600	1100	99.5	-50	5	p	Broad-band complementary pair
AR550-1130	852	580	1125	0.5	0	0	p	Broad-band anti-reflection coating
F1551	725	450	1000	5	-	0	p	Beam splitter
PC1332	725	450	1000	99	-40	5	p	Broad-band double-angle dispersive mirror
PC122	775	500	1050	94	-50	5	p	Broad-band double-angle dispersive mirror
PC70	775	500	1050	99	-40	5	p	Broad-band double-angle dispersive mirror
BS1631	800	500	1050	50	0	45	p	Beam splitter
PC45	825	550	1100	99	-40	7	p	Broad-band complementary pair
PC47	825	550	1100	98	-60	7	p	Broad-band complementary pair
PC5	825	550	1100	99	-40	5	p	Broad-band complementary pair
BS2043	700	400	1000	30	0	45	p	Beam splitter
BS2044	700	400	1000	50	0	45	p	Beam splitter
BS1504	750	450	1050	50	0	55.47	p	Beam splitter
CM2012	900	600	1200	98.5	-50	5	p	Broad-band complementary pair
CM2112	900	600	1200	98.5	-50	5	p	Broad-band complementary pair
PC2020	900	600	1200	99	-50	7	p	Broad-band complementary pair
BS2042	725	400	1050	70	0	45	p	Beam splitter
CM65	825	450	1200	94	-30	5	p	Ultra-broad-band dispersive mirror
PC2151	875	500	1250	96	-40	5	p	Broad-band complementary pair

UltraFast Innovations UFI色散超快鏡，啁啾鏡對，低損耗高激光損傷閾值鏡片，紫外光學器件

255-277nm 負色散 UV 超快反射鏡

-145 fs2 的負 GDD
255 - 277nm 之間 5° 的入射角
非常適合 UV 超快激光束的脈沖壓縮或色散補償
獨特的 UV 負色散超快鍍膜
UltraFast Innovations (UFI) 255-277nm 負色散 UV 超快反射鏡采用熔融石英基板，具有出色的熱穩定性和 25.4 毫米直徑，便于集成到 UV 應用中�；谏⒐鈱W干涉，超快啁啾鍍膜為這些反射鏡提供 -145 fs2 的負 GDD。這些反射鏡旨在提供對光束穩定性的高度控制，并在 255 - 277nm 之間具有 >80%（P 偏振）的反射率。在設計入射角 (AOI) 為 5° 時，這些反射鏡可最大限度地增加一對超快反射鏡之間的反射次數，同時保持較小的占地面積。UltraFast Innovations (UFI) 255-277nm 負色散 UV 超快反射鏡允許壓縮 UV 超快激光脈沖，例如由 Ti:sapphire 激光器的 3 次諧波和 Yb:doped 激光器的 4 次諧波產生的脈沖。

Name	CW (nm)	Min (nm)	Max (nm)	Reflectivity (%)	GDD (fs2)	AOI (°)	Pol	Comments
F1403	250	240	260	90	-	0	p	High-reflective mirror
CM313	250	230	270	80	-70	8	s	High-dispersive mirror
HD7102	260	255	265	90	-50	5	p,s	Dispersive mirror
HR257	260	235	285	99	0	45	s	UV high-reflector
CM1302	262	250	275	98	0	0	p	High-reflective mirror
HD100	263	255	277	80	-145	5	p	High-dispersive mirror
CM1401	264	258	270	99.95	0	0	p	High-reflective mirror
HR266	265	255	275	98	0	45	s	Dichroic mirror
F1306	265	250	280	49	-20	45	p	Beam splitter
TFP11	266	258	274	95	-	56	s	Thin-film polarizer
CM135	271	270	273	98	-60	7	p	High-dispersive mirror
CM1511	273	268	278	80	-116	5	p,s	Dispersive mirror
BS1201	300	290	310	97	-	75	p	Beam splitter
CM31	305	250	360	98	0	5	p	Broad-band high-reflective mirror
CM58	305	240	370	95	0	5	p	Broad-band dichroic mirror
HD1821	347.5	320	375	99.9	-50	5	p	High-dispersive mirror
F1310	365	300	430	90	-	0	p	Beam splitter
CM82	400	350	450	99	-50	5	p	Broad-band dispersive mirror

VIS optics

Name	CW (nm)	Min (nm)	Max (nm)	Reflectivity (%)	GDD (fs2)	AOI (°)	Pol	Comments
F1310	365	300	430	90	-	0	p	Beam splitter
CM82	400	350	450	99	-50	5	p	Broad-band dispersive mirror
HD7105	402.5	380	425	99	-120	5	p,s	Dispersive mirror
HD7203	407.5	355	460	99.5	-50	5	p,s	Dispersive mirror
CM2099	410	380	440	99.97	-50	5	p,s	Dispersive mirror
BS41	417	375	460	98	-20	45	p	Beam splitter
CM2003	450	380	520	99.9	-50	5	p	Broad-band complementary pair
CM2009	450	380	520	99.95	-45	5	p	Broad-band complementary pair
PC310	450	300	600	92	-25	5	p	Broad-band dispersive double angle mirror
HD7215	465	420	510	99.5	-50	5	p,s	Dispersive mirror
CM1601	522.5	505	540	99.9	0	7	p	Dispersive mirror with high reflectivity
HD1820	525	475	575	99.8	-100	5	p	High-dispersive mirror
PC55	525	450	600	99	-40	5	p	Broad-band dispersive mirror
HD71	525	400	650	99	-50	5	p	Broad-band double-angle dispersive mirror
UHR1301	540	500	580	99	0	3	p	High-reflective mirror
CM53	550	450	650	99	0	5	p	Broad-band high-reflective mirror
AR400	550	400	700	0.1	0	0	both	Broad-band anti-reflection coating
PC120_RC1	562	450	675	99	-30	5	p	Broad-band dispersive mirror
PC120_RC2	562	450	675	99	-30	5	p	Broad-band double-angle dispersive mirror
PC1815	575	400	750	99.5	-40	5	p	Broad-band complementary pair
PC318	575	400	750	99	-50	5	p	Broad-band complimentary pair
UHR35	577	530	625	99	0	0	p	High-reflective mirror
TOD72	590	555	625	99	0	5	p	Mirror with third order dispersion (TOD)
HD69	600	500	700	98	-100	5	p	High-dispersive mirror
BS1501	625	500	750	99	-40	5	p	Beam splitter
UHR1302	630	580	680	99	0	3	p	High-reflective mirror
PC109_RC1	650	500	800	97	-25	5	p	Broad-band dispersive mirror
PC109_RC2	650	500	800	97	-25	5	p	Broad-band double-angle dispersive mirror
HR101	650	300	1000	98	-	45	s	Broad-band high-reflective mirror
F1311	675	500	850	50	0	45	s	Beam splitter
TOD301	685	650	720	95	0	5	p,s	Mirror with third order dispersion (TOD)
UHR301	700	660	730	99.97	0	0	p	High-reflective mirror
HD1601_v2	700	600	800	99.5	-150	7	p	High-dispersive mirror
PC75	700	500	900	99	-40	5	p	Broad-band double-angle dispersive mirror
HRVLT	700	460	940	98	-	45	p	High-reflective mirror
PC1411	700	450	950	99	-50	5	p	Broad-band dispersive double angle mirror
PC37_1	700	450	950	99	-30	5	s	Broad-band double-angle dispersive mirror
PC37_2	700	450	950	99	-30	5	s	Broad-band double-angle dispersive mirror
PC37_3	700	450	950	98	-30	5	p	Broad-band double-angle dispersive mirror
BS2043	700	400	1000	30	0	45	p	Beam splitter
BS2044	700	400	1000	50	0	45	p	Beam splitter
HD1441	720	680	760	99.8	-500	5	p,s	High-dispersive mirror
PC37_4	720	480	960	99	-40	5	p	Broad-band double-angle dispersive mirror
BS71	725	525	925	33	0	5	p	Beam splitter
BS1412	725	500	950	99.98	-	45	s	Beam splitter
F1551	725	450	1000	5	-	0	p	Beam splitter
PC1332	725	450	1000	99	-40	5	p	Broad-band double-angle dispersive mirror
BS2042	725	400	1050	70	0	45	p	Beam splitter
CM71	750	500	1000	98	0	45	p	Beam splitter (dispersion controlled within 550-610nm)
PC1334_RC4	750	500	1000	98	-40	5	p	Broad-band double-angle dispersive mirror
PC42	750	500	1000	99	-45	5	p	Broad-band double-angle dispersive mirror
BS1504	750	450	1050	50	0	55.47	p	Beam splitter

UltraFast Innovations UFI色散超快鏡，啁啾鏡對，低損耗高激光損傷閾值鏡片，紫外光學器件

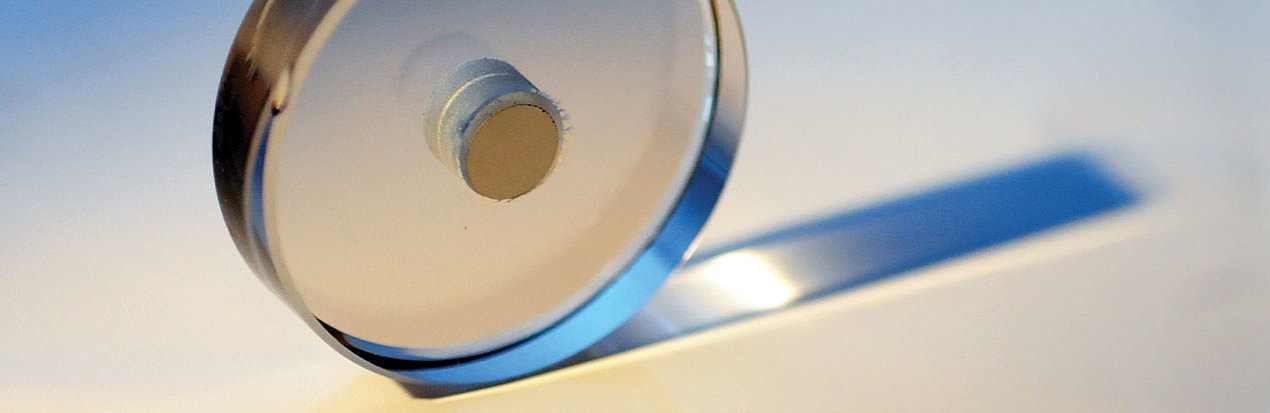

極紫外（EUV）阿秒多層反射鏡

設計用于65eV（19nm）下的 330 阿秒脈沖
具有38%峰值反射率的多層鍍膜
≤1 表面粗糙度超拋光基底
另外提供專為 13.5nm 設計的極紫外（EUV）平面反射鏡和極紫外（EUV）球面反射鏡

無最小起訂量、無鍍膜批次費用

UltraFast Innovations (UFI)的極紫外光(EUV/XUV)阿秒多層反射鏡設計用于阿秒脈沖的轉向、聚焦和整形。他們的多層膜中心位于65eV（19nm），帶寬為6eV（1.8nm），為 S 偏振光提供38%的峰值反射率。這些反射鏡支持持續時間為330阿秒的極紫外（EUV）脈沖。 UFI極紫外（EUV/XUV）阿秒反射鏡是基于高次諧波（HHG）、自由電子激光器（FEL）或其他量子光學應用產生和整形阿秒脈沖的理想選擇。

Name	CW (nm)	Min (nm)	Max (nm)	Reflectivity (%)	GDD (fs2)	AOI (°)	Pol	Comments
XUV300BW1	4.1	4.1	4.2	8	-0.15	5	s	XUV mirror
XUV200BW7	6.2	6	6.7	5	0.003	45	s	XUV mirror
XUV180BW2	6.7	6.9	7.3	8	-0.015	5	s	XUV mirror
XUV170BW3	7.3	7.1	7.5	20	-0.008	45	s	XUV mirror
XUV155BW5	8	7.7	8.9	6	0.005	5	s	XUV mirror
XUV150BW3	8.3	7.8	9	9	0.001	5	s	XUV mirror
XUV145BW3	8.6	8.2	9.5	8	0.008	5	s	XUV mirror
XUV135BW3	9.2	8.7	10.3	9	-0.001	5	s	XUV mirror
XUV134BW5	9.3	8.9	9.7	9	-0.01	5	s	XUV mirror
XUV130BW4	9.5	8.7	10.3	6	0.003	45	s	XUV mirror
XUV130BW8	9.5	8.9	10.2	13	-0.002	45	s	XUV mirror
XUV125BW2	9.9	9.5	10.3	19	0.006	5	s	XUV mirror
XUV115BW11	10.8	9.5	11.5	15	0.001	0	s	XUV mirror
XUV112BW2	11.1	10.8	11.4	27	-0.02	5	s	XUV mirror
XUV112BW5	11.1	9.7	12	33	-0.017	5	s	XUV mirror
XUV109BW10	11.4	9.9	12.8	15	-0.006	2	s	XUV mirror
XUV107BW2	11.6	11.3	11.9	25	-0.01	5	s	XUV mirror
XUV105BW5	11.8	10.2	12.9	40	-0.014	5	s	XUV mirror
XUV101BW10	12.3	11.2	13.8	15	0.001	5	s	XUV mirror
XUV100BW10	12.4	11.3	13.6	42	-0.01	45	s	XUV mirror
XUV95BW5	13.1	12.5	13.6	53	-0.004	5	s	XUV mirror
XUV95BW8	13.1	12.2	14.1	24	0.004	2	s	XUV mirror
XUV94BW3	13.2	12.7	13.8	48	-0.024	5	s	XUV mirror
XUV93BW2	13.3	12.9	13.8	29	-0.005	5	s	XUV mirror
XUV93BW5	13.3	12.8	13.9	52	-0.006	5	s	XUV mirror
XUV93BW7	13.3	12.4	14.3	28	-0.002	5	p	XUV mirror
XUV93BW10	13.3	12.2	15.1	16	-0.001	0	s	XUV mirror
XUV93BW16	13.3	11.3	16.1	7	-0.005	5	s	XUV mirror
XUV92BW10	13.5	12.4	14.8	53	-0.002	45	s	XUV mirror
XUV92BW8	13.5	12.5	14.6	26	-0.002	2	s	XUV mirror
XUV92BW7	13.5	12.2	15.5	69	0.002	45	s	XUV mirror
XUV92BW17	13.5	10.3	41.3	68	-0.01	66	s	XUV mirror
XUV90BW5	13.8	13.1	14.6	51	-0.006	5	p	XUV mirror
XUV90BW6	13.8	13.1	14.6	41	-0.004	5	s	XUV mirror
XUV90BW10	13.8	12.5	15.3	18	-0.002	5	s	XUV mirror
XUV90BW8	13.8	12.4	15.5	67	0.001	45	s	XUV mirror
XUV87BW18	14.3	11.7	17.7	8	-0.001	5	s	XUV mirror
XUV85BW10	14.6	13.1	16.5	18	-0.002	5	s	XUV mirror
XUV83BW8	14.9	13.5	16.5	27	-0.002	5	s	XUV mirror
XUV82BW9	15.1	13.6	17	25	-0.002	5	s	XUV mirror
XUV82BW8	15.1	12.4	17.7	66	0.013	45	s	XUV mirror
XUV75BW16	16.5	13.8	20.7	12	-0.001	5	s	XUV mirror
XUV70BW9	17.7	15.7	20.3	30	-0.001	5	s	XUV mirror
XUV70BW6	17.7	15.5	20.7	44	0.01	5	s	XUV mirror
XUV68BW30	18.2	12.4	37.6	5	0.001	5	s	XUV mirror
XUV67BW2	18.5	17.7	20	25	-0.03	5	s	XUV mirror
XUV67BW3	18.5	17	20.7	38	0.02	5	s	XUV mirror
XUV65BW5	19.1	16.5	22.5	40	0.03	5	p	XUV mirror
XUV65BW6	19.1	15.9	31	38	0.015	2	s	XUV mirror
XUV66BW13	19.1	14.6	32.6	39	0.003	45	s	XUV mirror
XUV63BW7	19.7	16.5	31	35	0.008	0	s	XUV mirror
XUV60BW5	20.7	18.2	25.8	31	-0.019	45	s	XUV mirror
XUV59BW4	21	17.7	24.8	31	0.023	45	s	XUV mirror
XUV57BW10	21.8	17.2	31	23	0.004	5	s	XUV mirror
XUV54BW4	23	21	25.3	13	0.005	0	s	XUV mirror
XUV53BW2	23.4	21.8	27.6	20	-0.06	15	p	XUV mirror
XUV50BW5	24.8	22.5	31	12	0.005	0	s	XUV mirror
XUV50BW4	24.8	20.7	31	30	0.019	45	s	XUV mirror
XUV46BW17	27	17.2	38.7	11	0.003	5	s	XUV mirror
XUV43BW2	28.8	25.8	32.6	19	0.005	10	s	XUV mirror
XUV42BW4	29.5	25.3	35.4	18	-0.017	5	p	XUV mirror
XUV41BW17	30.2	22.5	49.6	11	0.008	5	s	XUV mirror
XUV38BW3	32.6	27.6	41.3	23	0.025	5	s	XUV mirror
XUV37BW2	33.5	27.6	41.3	15	-0.002	15	p	XUV mirror
XUV35BW4	35.4	31	41.3	19	0.006	5	s	XUV mirror
XUV35BW3	35.4	28.8	41.3	23	-0.028	4	p	XUV mirror
XUV32BW2	38.7	31	45.9	22	0.04	5	s	XUV mirror
XUV28BW2	44.3	35.4	51.7	11	-0.01	15	p	XUV mirror
XUV26BW6	47.7	40	62	25	0.007	5	s	XUV mirror
XUV25BW10	49.6	22.5	65.3	12	0.035	5	s	XUV mirror
XUV22BW7	56.4	38.7	72.9	18	0.023	5	s	XUV mirror



	上海玻色智能科技有限公司上海: (021)3353-0926, 3353-0928 北京: (010)8217-0506 廣州: 139-0221-4841 武漢: 139-1733-4172 全國銷售服務熱線：4006-171751 Email: info@bosontech.com.cn imbuy.com.cn 2008-2025 All Rights Reserved!
熱門產品：光纖光譜儀、積分球、均勻光源、SEMROCK濾光片、太赫茲系統、濾光片、石墨烯納米材料滬ICP備09026157號-2

UFI色散超快鏡，啁啾鏡對，低損耗高激光損傷閾值鏡片，紫外光學器件

UFI色散超快鏡，啁啾鏡對，低損耗高激光損傷閾值鏡片，紫外光學器件
